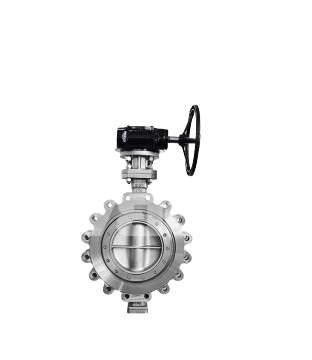

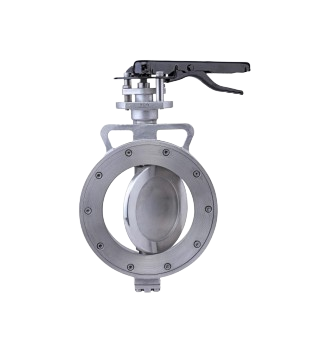

Butterfly Valve

High precision stainless steel needle valve designed for accurate flow regulation in high-pressure industrial applications.

SS 316 High Pressure

Butterfly Valves

The first time you handle a Butterfly Valve, it feels almost too easy. A quick quarter turn, and the flow changes instantly—open or closed, just like that. No endless spinning, no waiting around. I remember working on a large water line where space was tight and time was tighter. Installing bulky valves just wasn’t practical. That’s where a Butterfly Valve made sense. It’s compact, lightweight, and doesn’t demand much effort to operate. For beginners, that simplicity is a big win. You can actually see the disc turning inside if you look closely, which makes it easier to understand what’s happening. Unlike more complex setups, a Butterfly Valve gives you immediate feedback. Turn the handle, and you know exactly where you stand. It’s straightforward, and sometimes that’s exactly what you need on a busy site.

Technical Specifications

Detailed engineering specifications of our valve products

Category Specification Details
Valve Type Wafer Type / Lug Type / Double Flanged / Triple Offset / High-Performance Butterfly Valve
Design Standard API 609 / ISO 5752 / AWWA C504 (For Large Sizes)
Face-to-Face Standard ISO 5752 / API 609 / EN 558
Flange Standard ASME B16.5, ASME B16.47, EN 1092-1, DIN PN10–PN40
End Connections Wafer, Lug, Double Flanged, Grooved End
Size Range 2″ to 72″ (DN50–DN1800)
Pressure Rating PN10 / PN16 / PN25 / PN40, ASME Class 150 / 300
Body Material Cast Iron, Ductile Iron, WCB, CF8/CF8M, Duplex, Aluminum Bronze
Disc Material SS304 / SS316 / Duplex / Aluminum Bronze / Coated Disc
Stem Material SS410 / SS304 / SS316 / Duplex Steel
Seat Material EPDM, NBR, PTFE, Viton, Metal Seat (Triple Offset)
Seal / Packing PTFE, EPDM, NBR, Graphite (High-Temperature)
Operation Type Lever, Gear Operated, Pneumatic Actuator, Electric Actuator
Temperature Range −20°C to +200°C (Soft Seat), up to 425°C (Metal Seat – Triple Offset)
Working Medium Water, Air, Oil, Gas, Steam, Chemical Fluids, Sea Water
Fire Safe Design API 607 / ISO 10497 (Applicable for Triple Offset Metal Seat)
Testing Standard API 598 / API 609 / ISO 5208
Blow-Out Proof Stem Provided as per API 609
Anti-Static Device Provided (for high-performance metal seated valves)
Mounting Pad ISO 5211 Actuator Mounting Pad
Design Features Bi-directional sealing, Low torque, Bubble-tight shutoff, Triple Offset Design (if applicable), One-piece body
Applications HVAC, Water Treatment, Oil & Gas, Chemical Plants, Marine, Power Plants, Process Industries
Documentation GA Drawing, MTC EN 10204 3.1, QAP, Hydrostatic Test Report, Compliance Certificates

Best Butterfly Valves

But here’s the part people don’t always mention, a Best Butterfly Valves isn’t perfect for every situation. Because the disc stays in the flow path even when fully open, there’s always a bit of resistance. In some systems, that’s no big deal. In others, especially where maximum flow efficiency matters, it can be a concern. I’ve seen engineers go back and forth over this, weighing space savings against performance. And then there’s control. Yes, a Best Butterfly Valves can be used for throttling, but it takes a careful hand. Push it too far, and you might wear out the seat faster than expected. It’s one of those “learn by doing” things. Still, when you need something quick, reliable, and easy to install, a Best Butterfly Valves often hits the sweet spot. It may not be the perfect fit for every job, but when used in the right place, it does exactly what it’s supposed to—no fuss, no complications.

"In industrial systems, a small leak can lead to big problems, that’s why sealing performance matters."

Key Features

Precision Control

Ensures accurate and smooth flow regulation.

High Pressure Resistance

Built for demanding industrial environments.

Leak Proof Design

Advanced sealing ensures zero leakage.

Corrosion Resistant

Made with premium stainless steel materials.
