I still remember the first time I handled ball valves on-site. There was no manual, no long explanation—just a quick “turn it and see.” And that’s the beauty of it. Unlike some valves that need careful adjustment, ball valves are straightforward. You either allow flow, or you stop it.
Ball Valve
High precision stainless steel needle valve designed for accurate flow regulation in high-pressure industrial applications.
Ball Valves
Technical Specifications
Detailed engineering specifications of our valve products
| Category | Specification Details |
|---|---|

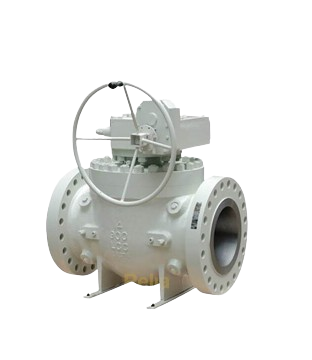

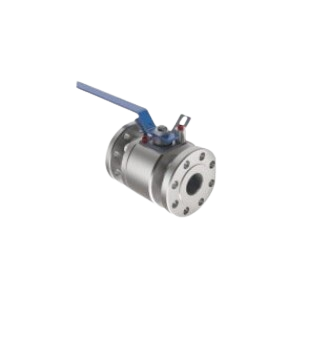

| Valve Type | Floating Ball / Trunnion Mounted (depending on size & pressure class) |
| Design Standard | API 608 / API 6D / ISO 17292 / ASME B16.34 |
| Face-to-Face | ASME B16.10 |
| Flange Standard | ASME B16.5 / ASME B16.47 |
| End Connections | Flanged / Screwed / Socket Weld / Butt Weld / Compression |
| Size Range | ½” to 24” |
| Pressure Rating | Class 150 to 2500 / PN10–PN250 |
| Body Material | WCB, A351 CF8/CF8M, Duplex, Alloy Steel |
| Ball Material | SS304, SS316, Duplex, Chrome Plated Steel |
| Seat Material | PTFE, RPTFE, PEEK, Nylon, Metal Seated |
| Operation Type | Manual / Pneumatic / Hydraulic / Electric |
| Temperature | -50°C to +600°C |
| Working Medium | Water, Oil, Gas, Steam, Chemicals |
| Testing Standard | API 598 / ISO 5208 |
| Applications | Oil & Gas, Petrochemical, Power, Water Treatment |
| Documentation | GA Drawing, MTC EN10204 3.1, QAP, Hydrostatic Test Report, Compliance Certificates |
Ball Valve
Now, why do people prefer ball valves so much? It comes down to reliability. They seal tightly, even after long use. In industries where leakage can cause serious trouble—think chemicals or high-pressure water lines—that tight seal is not just helpful, it’s necessary.
"In industrial systems, a small leak can lead to big problems, that’s why sealing performance matters."
Key Features
Precision Control
Ensures accurate and smooth flow regulation.
High Pressure Resistance
Built for demanding industrial environments.
Leak Proof Design
Advanced sealing ensures zero leakage.
Corrosion Resistant
Made with premium stainless steel materials.
